Description

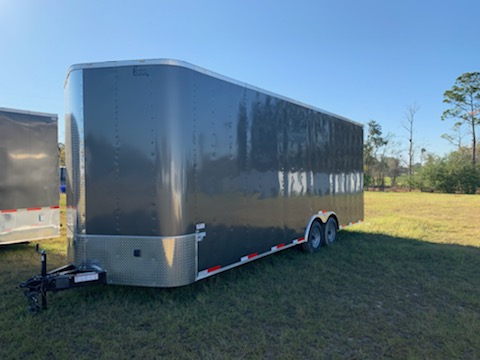

8.5×24 Tandem Axle with rounded front V-nose
Included Features:
2 Foot rounded V-nose in addition to 24 foot box
2×6 Tubular Main frame (No I-Beam)
Triple tube tongue
16″ on center floor cross members
Tubular 16″ on center walls
Tubular 16″ on center ceiling
5200 lb Dropped Leaf Spring axles
Electric Brakes (both axles)
Easy Lube Hubs
Electric Brake wiring ran inside steel tubing
Front V-nose Diamond Tread Stone guard
Aluminum Teardrop fenders
Charcoal Gray exterior aluminum .030 gauge

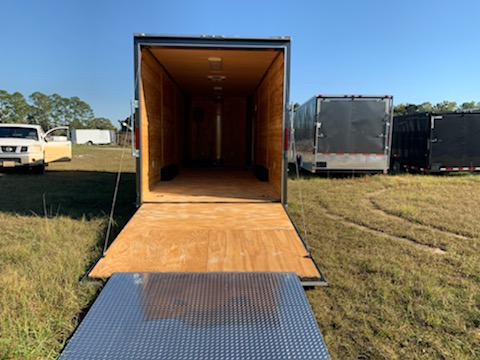

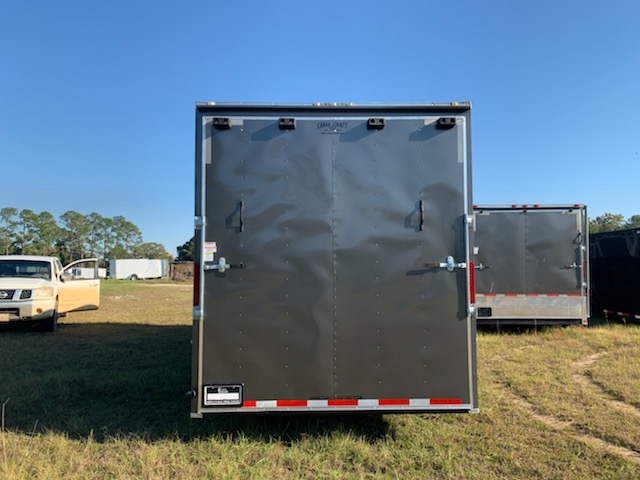

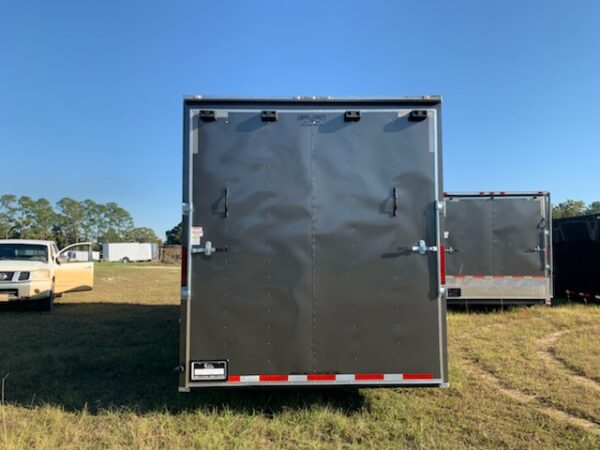

Rear 4500 lb Heavy Duty Ramp Door – Double spring assist

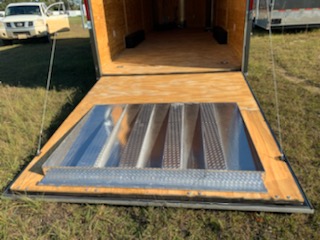

Heavy Duty 5 foot aluminum flap on ramp
4 Foot beaver tail on rear
3/4″ plywood floor
3/8” plywood walls
Raw luan ceiling liner
Insulated walls and ceiling
(4) D-ring tie downs in floor – recessed and bolted in place with steel plate
15″ Silver modular steel Wheels
Radial Tires 225/75/15
Spare Tire 225/75/15 Radial
8 Foot 6 inch interior height
All LED Lights
2 5/16th Front Coupler

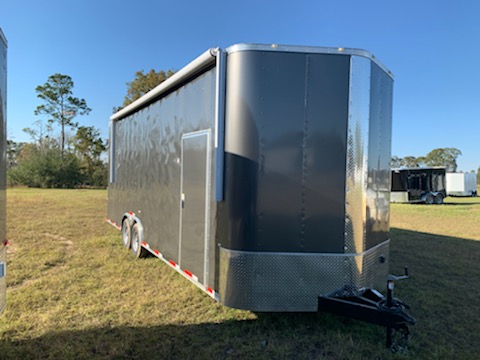

36″ RV Style side door
Built in step at side door
2000 lb Tongue Jack
Corrugated galvanized Mesa roof
Asphalt Undercoating
Drip edge over all doors
Screwed Exterior
Deluxe tag bracket w/ light
Sand foot on tongue jack
DOT Reflective Tape
3500# Winch with battery
23 Foot electric canvas awning

30 Amp electrical package

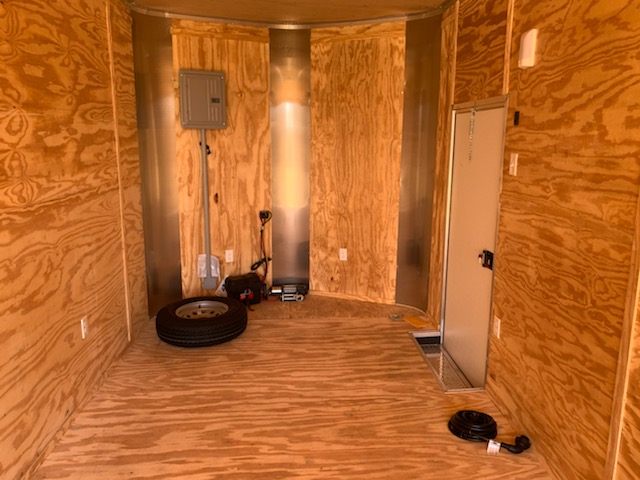

30 Amp panel box
(6) Interior outlets
(2) 4 Foot LED lights
30 Amp ship to shore cord (25 feet in length)
13,500 BTU A/C Unit with Heat Strip
