8.5×12 Tandem Axle – Concession Series (shell)

• Triple Tube Tongue
• 2×6 Tubular Main frame
• 52 Gallon Waste water tank (mounted under the trailer ) with drain Valve (this trailer could easily have sinks added to the trailer)
• City Water Fill up piece installed
• 16″ on center floor cross members
• Tubular 16″ on center wall studs
• Tubular 16″ on center ceiling
• Styrofoam Insulated walls and ceiling
• Flat Nose Design
• 3500 lb. Dropped Leaf Spring Axles
• Electric Brakes (both axles)
• Easy Lube Hubs
• Electric Brake Wiring ran inside steel tubing main frame
• Victory Red Exterior Aluminum .030 gauge
• Semi Screwless Exterior
• 36″ R/V style side door with window and screen door

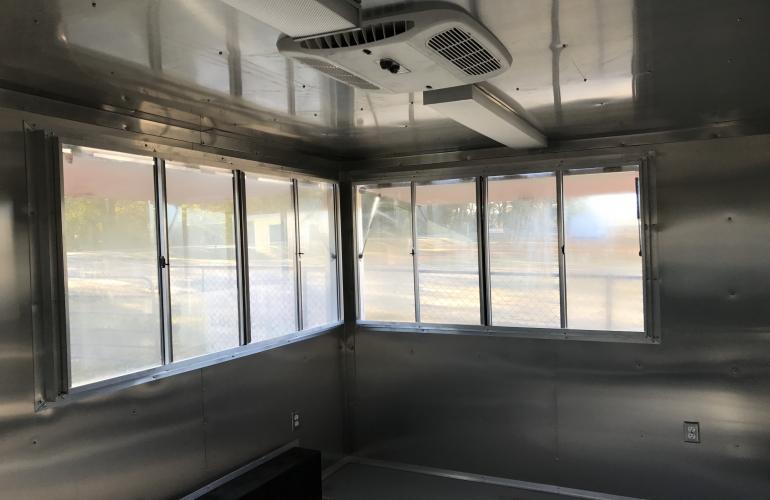

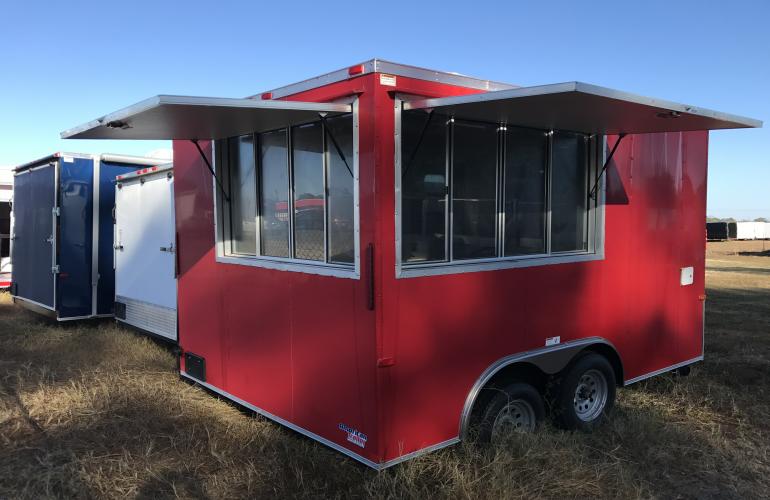

• (1) 40×74″ Concession Window with sliding glass windows – located on the curb side of the trailer
• (1) 40×64″ concession Window with sliding glass windows – Located on the rear
• Smooth aluminum Fenders
• 3/4″ Plywood Floor painted gray
• 7/16″ OSB Walls and Ceiling
• Mil finish Aluminum Walls and Ceiling – Interior
• 15″ Silver Mod Steel Wheels
• 205/75/15 Radial Tires
• 7 Foot Interior Height
• All LED Lights
• 2 5/16th Front Coupler
• (1) 12 volt dome light
• Corrugated galvanized Mesa roof
• Asphalt Undercoating
• Drip Edges Over All Doors
• Sand foot
• Deluxe license plate holder

50 Amp Electrical Package includes:

• (2) 4 foot LED Lights
• (6) interior outlets

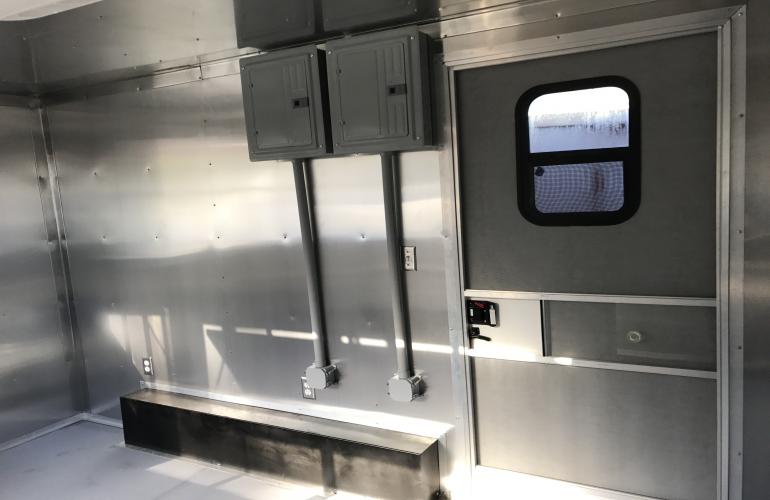

• 50 Amp Panel box
• (1) Outside GFI Outlet

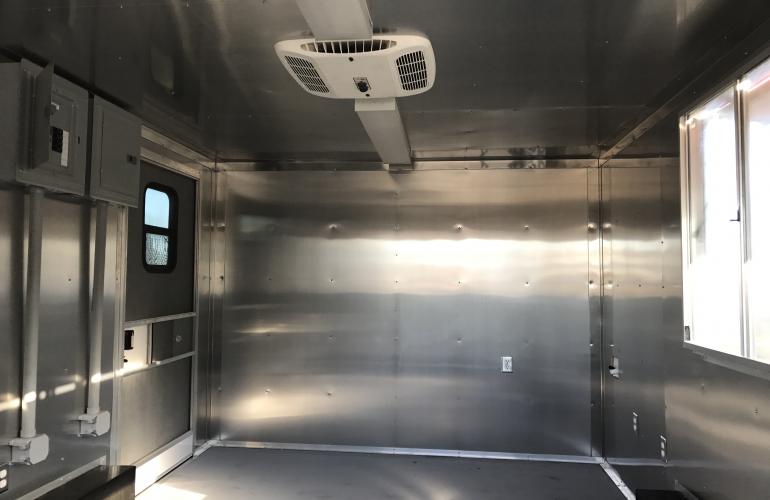

• A/C Unit 13,500btu with heat strip
• 25 foot Ship To Shore Cord (25 foot lifeline to power the trailer)
• Additional 50 Amp panel Box (total of (2) 100 amps) and 50 amp Ship to Shore cord Total of (2) 50 amp Ship to shore cords)
