Description

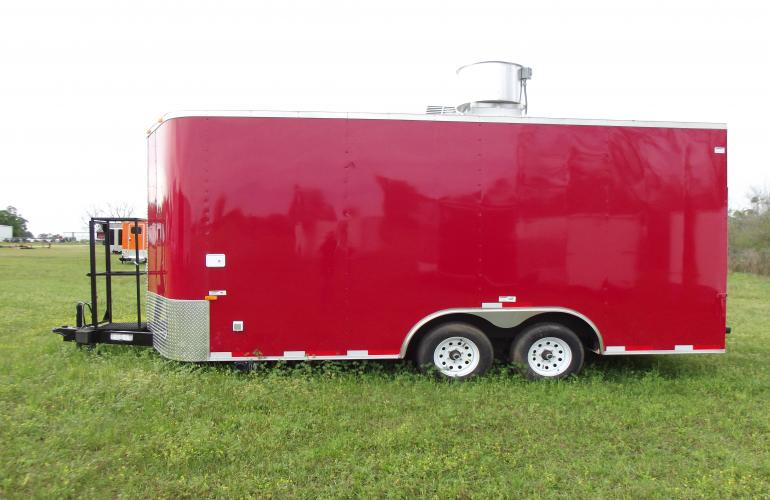

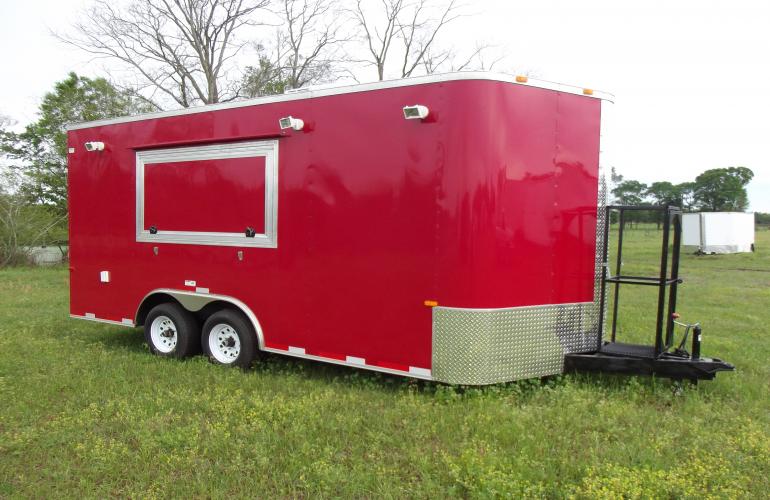

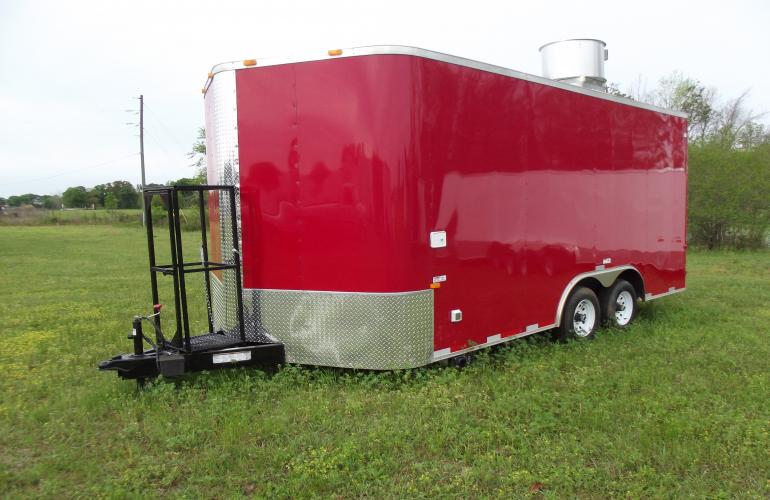

8.5 x 16 Tandem Axle Concession Trailer

• 2 Foot rounded V-nose in addition to 16′ box
• 2×6 Steel Tubular main frame (No I-Beam)
• Triple tube Tongue
• Extended Tongue
• 16″ on center floor cross members
• Tubular 16″ on center wall studs
• Tubular 16″ on center ceiling
• 3/4″ Plywood Floor
• 7/16″ OSB walls and ceiling
• White Aluminum interior Walls and Ceiling
• Insulated walls and ceiling
• 7 foot 6 inch Interior Height
• Tandem 5200 lb dropped leaf spring axles
• Electric brakes on both axles
• Easy Lube Hubs
• Electric brake wiring ran inside the tubular main frame
• 15″ White Wagon Style Wheels
• 225/75/15 Radial Tires
• Semi Screwless exterior
• Victory Red exterior aluminum .030 gauge

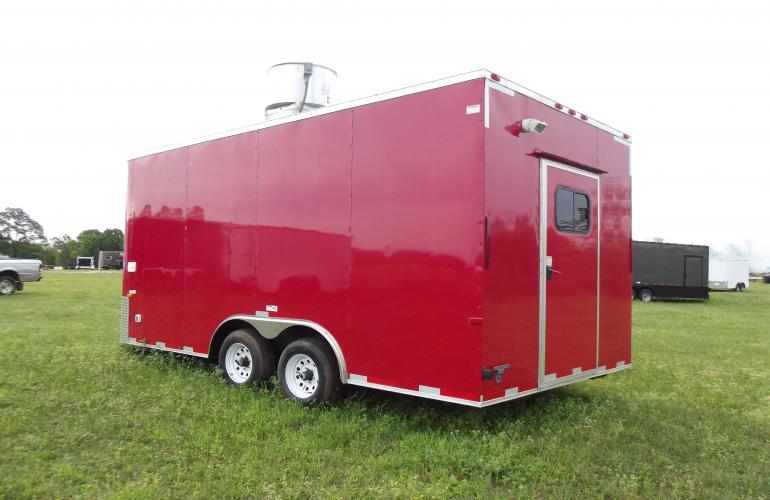

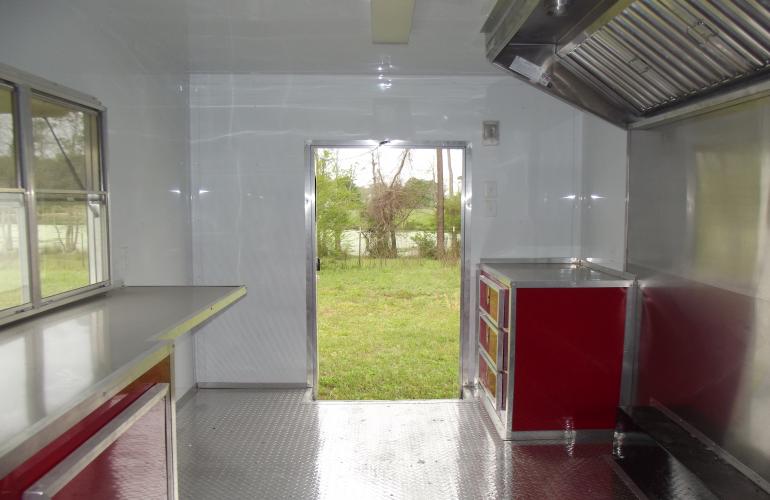

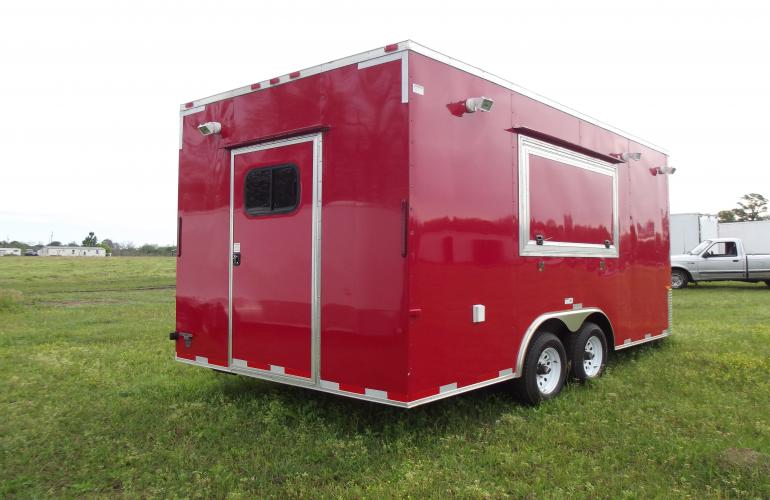

• 36″ R/V door with window and screen door – Located on the rear of trailer

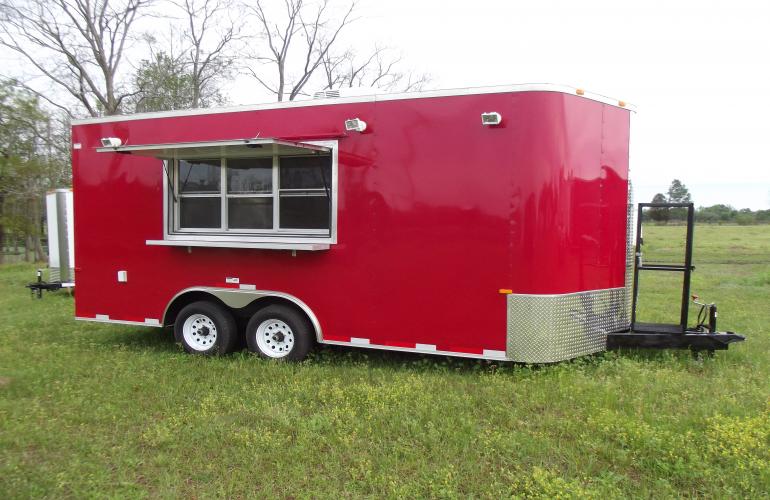

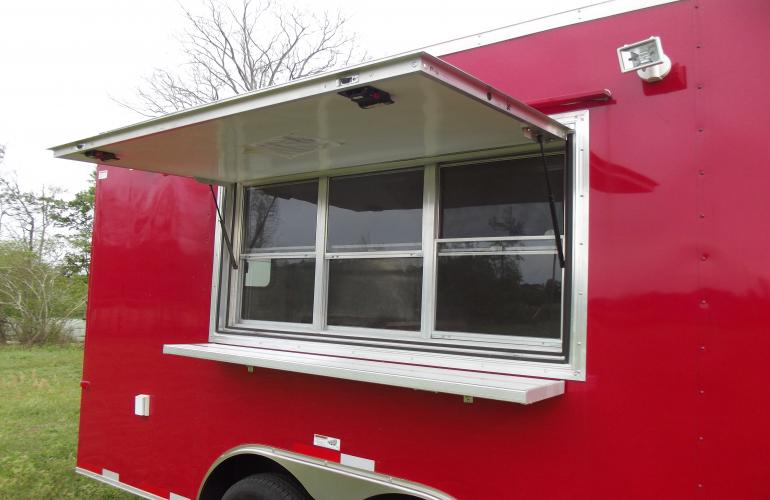

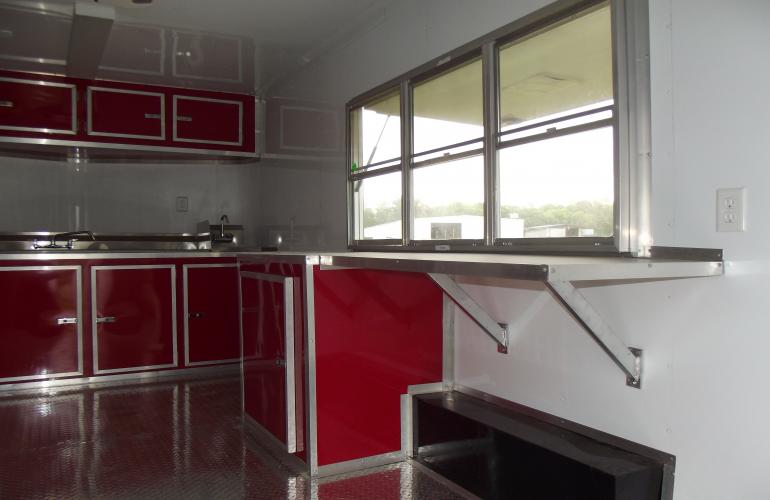

• (1) 3×6″ concession window with sliding glass windows and screens
• (1) Aluminum Exterior removable serving shelf – Under concession window

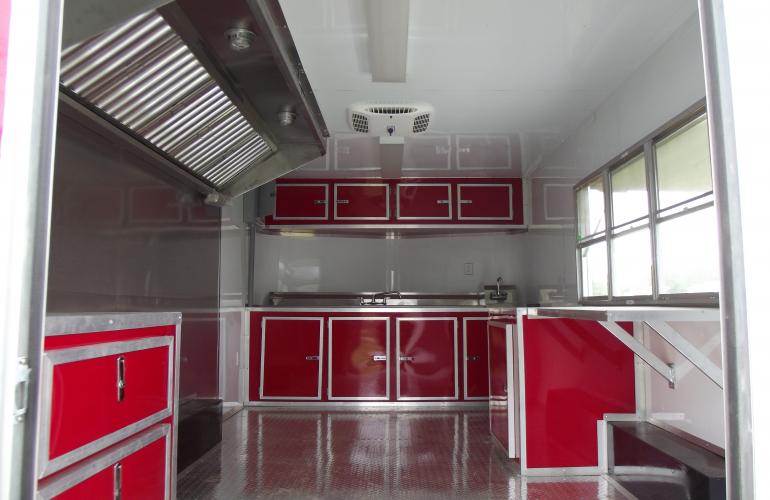

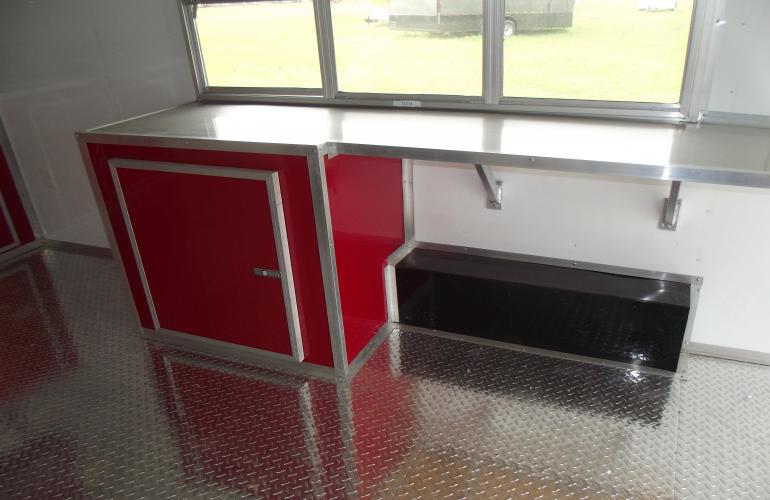

• Interior counter / base cabinet top under concession window (6 foot long total)
• Diamond Tread Flooring .063 gauge

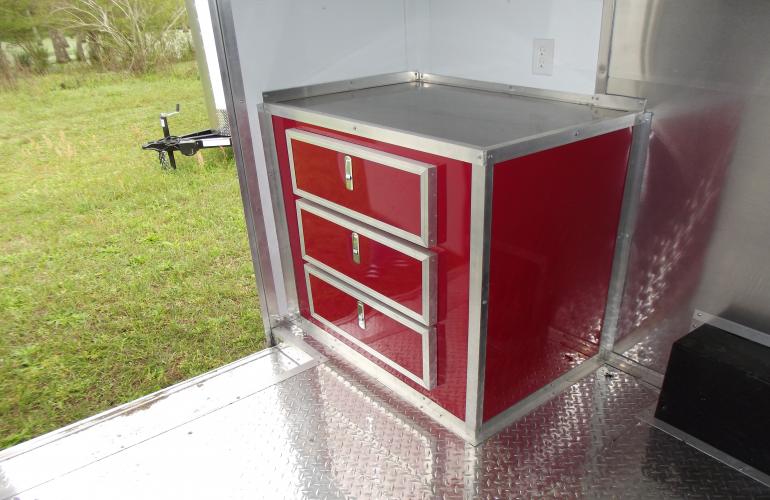

• 3 Foot base cabinets w/ 4 drawers – Located beside the rear entry door
• Stabilizer Jacks (rear)
• Rear Bogey Wheels

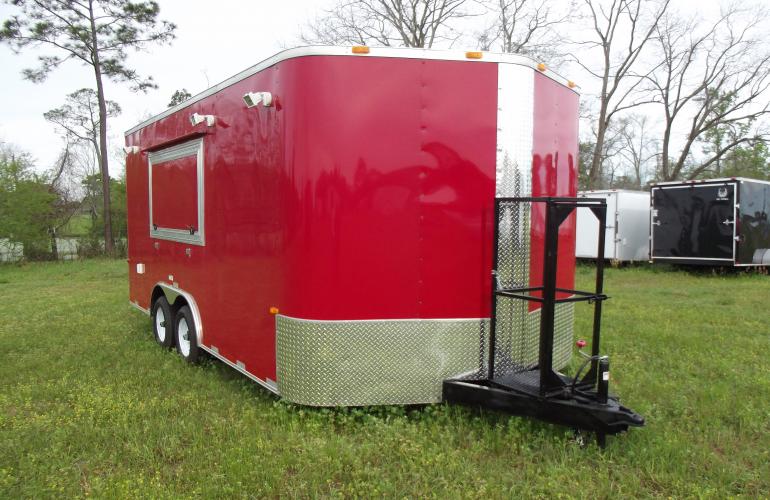

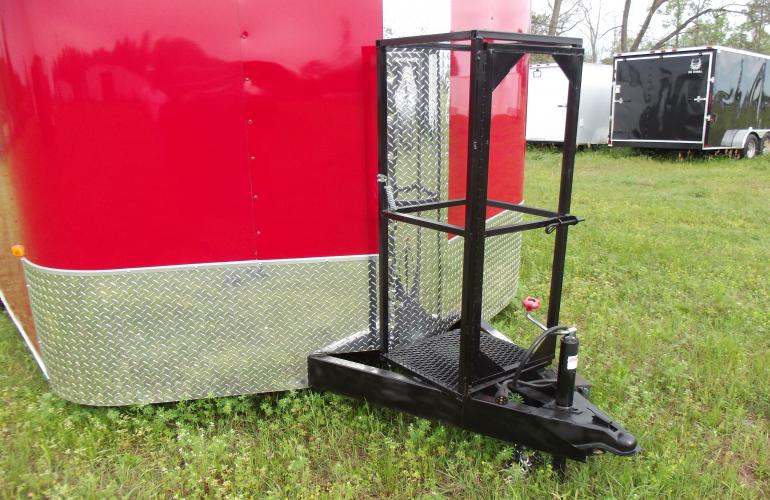

• (1) 100 lb Propane Tank and Cage on the hitch of the trailer
• 50 Amp Electrical Package
• 50 Amp panel box
• (4) LED flood lights
• (2) 4 foot LED lights
• (7) Interior Outlets
• (1) Exterior GFI outlet
• 50 Amp Ship to Shore cord (Lifeline 25 foot)
• AC unit with heat strip 13,500 btu

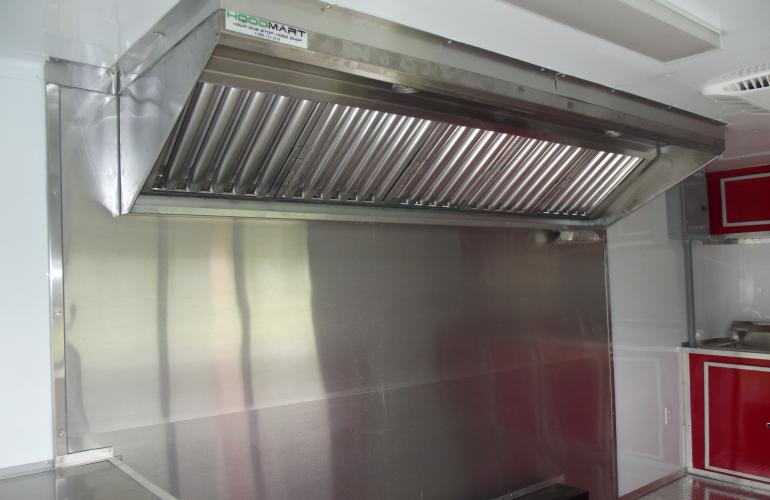

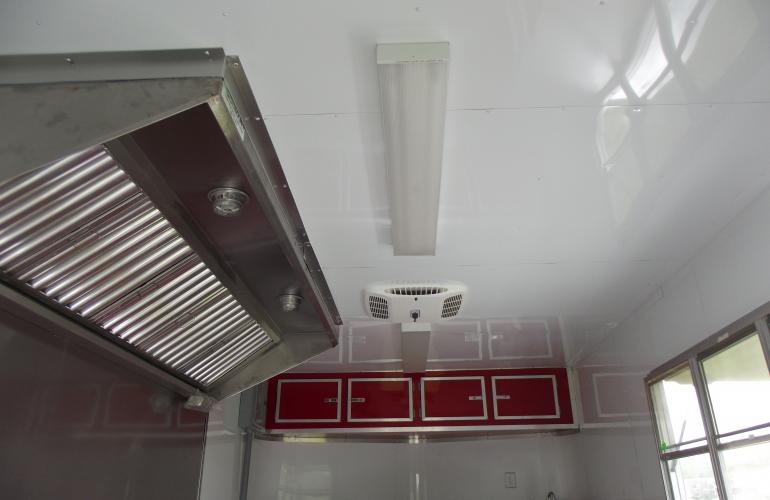

• 8 Foot Hood w/ Variable Speed Control and built in lights

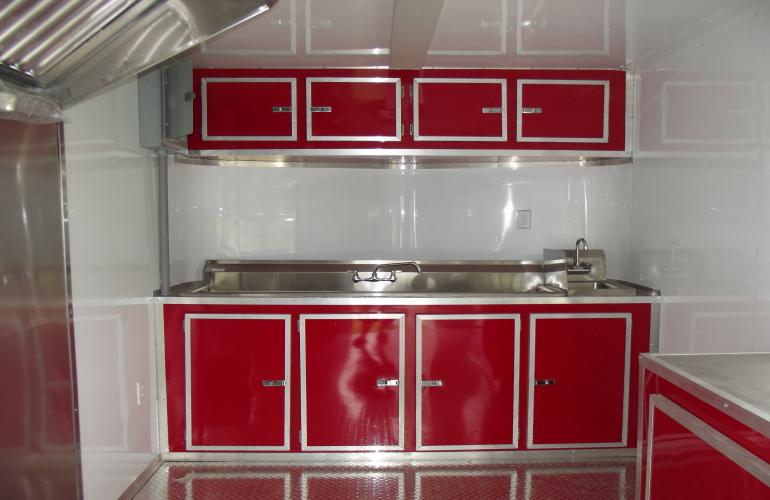

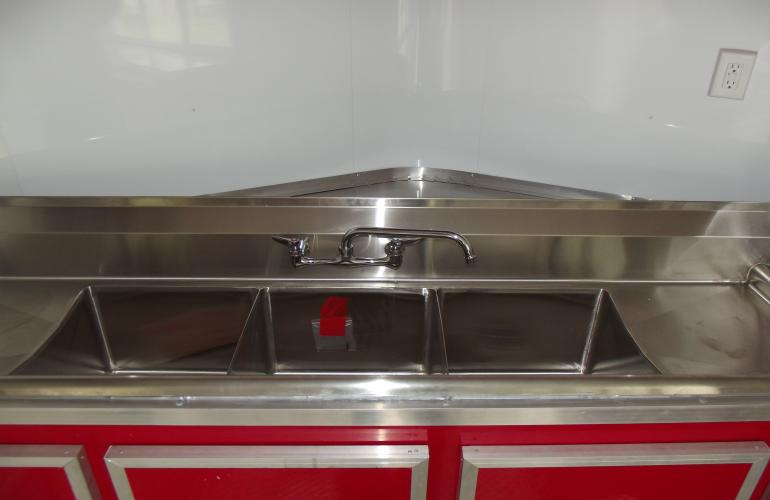

• (3) Compartment Sinks with splash guard and drain boards
• Sinks set inside base cabinets with (4) cabinets doors
• Hot water Heater (6 gallon)
• 30 Gallon Fresh Water Tank
• 52 Gallon Grey Water Tank
• On Demand Water Pump
• Upper cabinets in Red aluminum – above the sinks
• Asphalt Undercoating
• Drip edges over all doors
• 24″ Diamond Tread front stoneguard
• Smooth Aluminum fenders
• Corrugated Galvanized Mesa Roof
• All LED Lights
• (1) 12 volt dome light
• Deluxe tag bracket
• Sandfoot on tongue jack
