Description

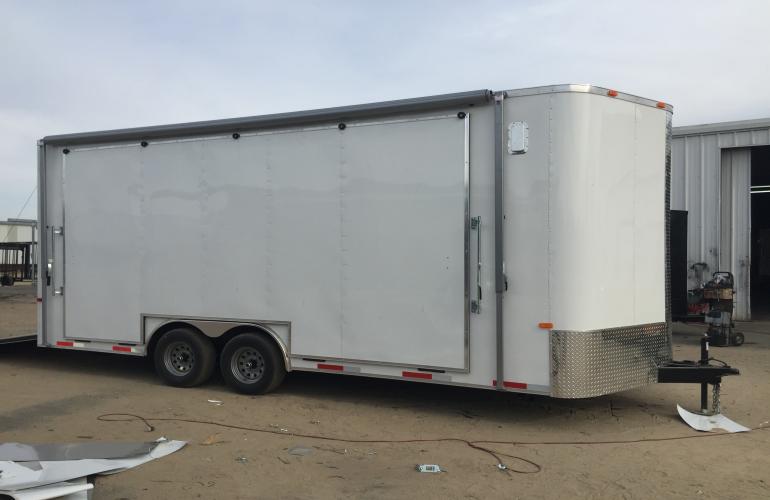

8.5×20 – STAGE Trailer. This trailer is perfect for small events or concerts!

Included Features:

• 2 Foot rounded V-nose in addition to 20 foot box
• 2×6 Tubular main frame
• 16″ On center floor cross members
• Tubular wall studs 16″ on center
• Tubular ceiling 16″ on center
• Triple Tube Tongue
• Extended tongue
• Asphalt Undercoating
• 3/4″ Plywood floor
• 3/8″ Plywood walls
• (4) D-ring tie downs in the floor – recessed and bolted in with steel plate
• White exterior aluminum .030 gauge
• 8 foot 6 inch interior height
• 5200 lb. Leaf Spring axles
•  Electric Brakes Both axles
• Electric brake wiring ran inside 2×6 main frame
• Easy Lube Hubs

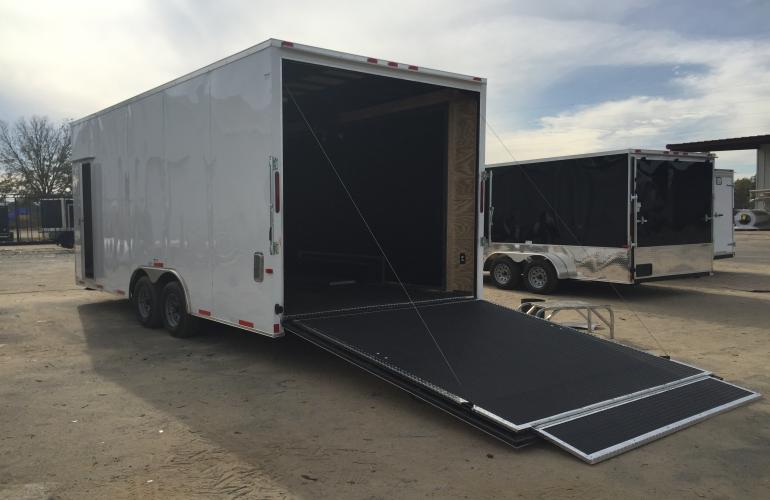

• Heavy Duty Rear ramp 4500# with flap
• 15″ silver Mod Wheels
• 225/75/15 Radial Tires
• Corrugated Galvanized Mesa Roof
• All LED lights

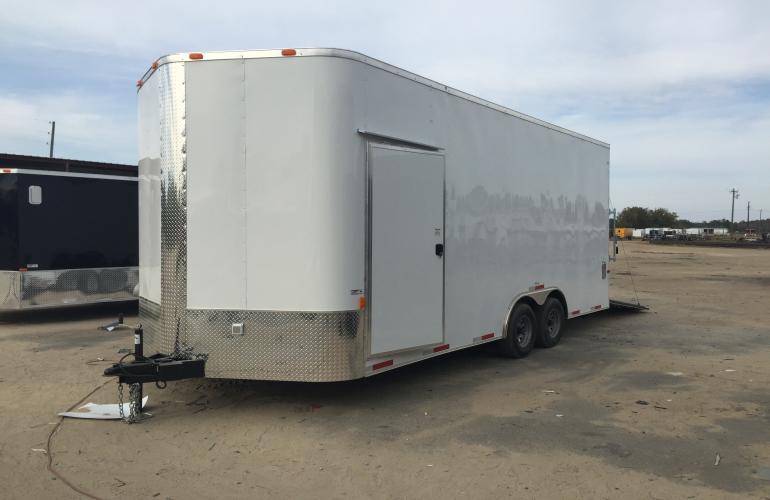

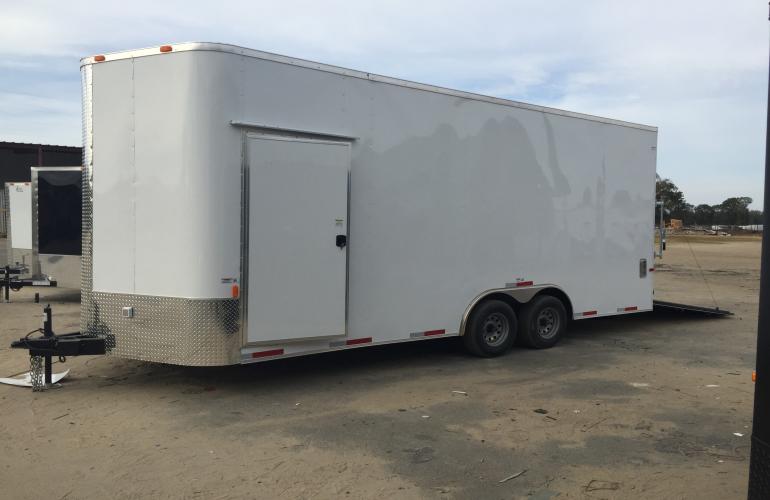

• 36″ R/V Style side door
• Built in step at side door
• 24″ Diamond Tread Stoneguard
• 2 5/16th Front coupler

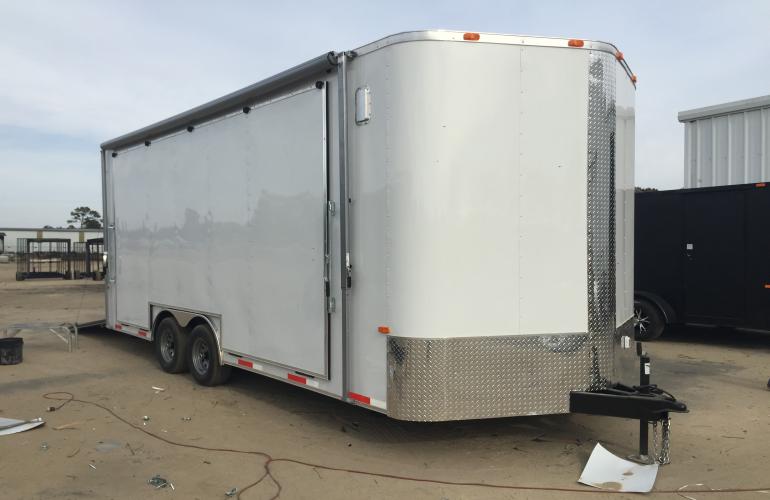

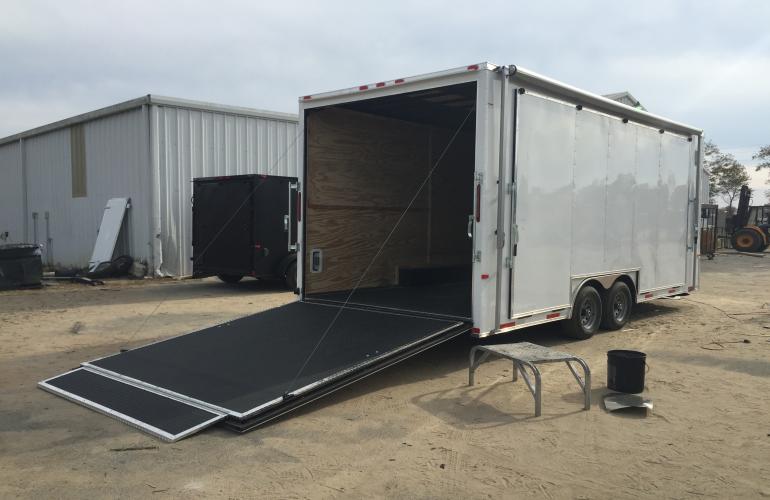

• 16 Foot Let down stage

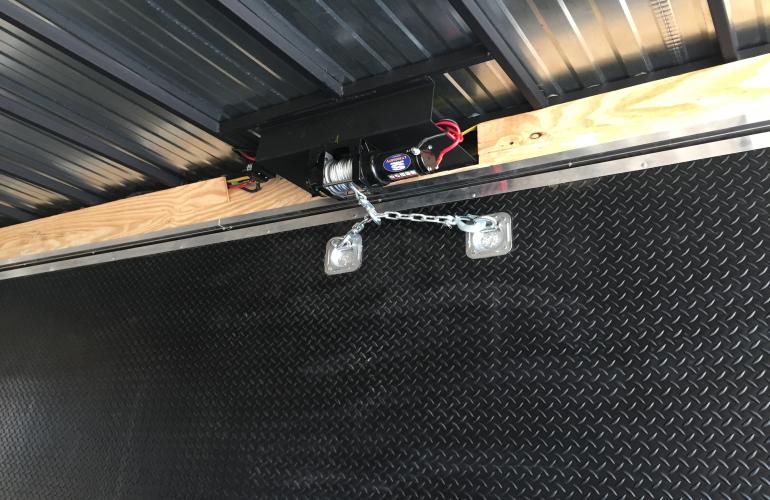

• Super Winch with 12 volt battery and battery box
• (3) scissor Jacks under the stage
• (4) Scissor Jacks under Trailer (1) under each corner of the trailer
• (1) set of aluminum steps to get on the stage
• Custom Built Inserts for the gaps when the stage is let down
• 18 foot awning over the stage with protective covering
• Rubber Tread Plate Floor on the 16 foot stage
• Rubber Tread Plate floor, ramp, & Flap

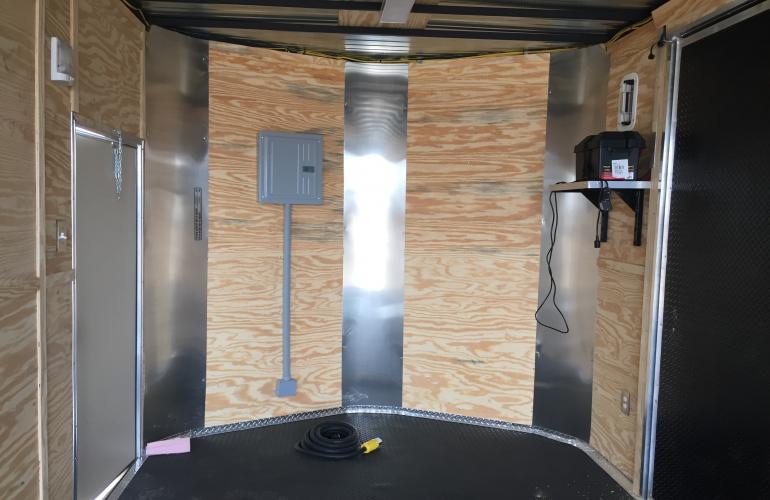

• 50 amp electrical Package
• (2) 4′ LED lights
• (5) interior Outlets
• 50 amp ship to Shore cord
• Sand foot on tongue jack
• Deluxe tag bracket
• DOT Reflective Tape
• Drip edges over all doors
