Description

8.5×20 Tandem Axle with rounded front V-nose

Included Features:

• 2 Foot rounded V-nose in addition to the 20 foot box
• 2×6 Tubular Main frame
• Triple tube tongue
• 16″ on center floor cross members
• Tubular 16″ on center walls
• Tubular 16″ on center ceiling
• 5200 lb Dropped Leaf Spring axles
• Electric Brakes (both axles)
• Easy Lube Hubs
• Electric Brake wiring ran inside steel tubing
• Front V-nose Diamond Tread Stone guard
• Aluminum Teardrop fenders
• Black exterior aluminum

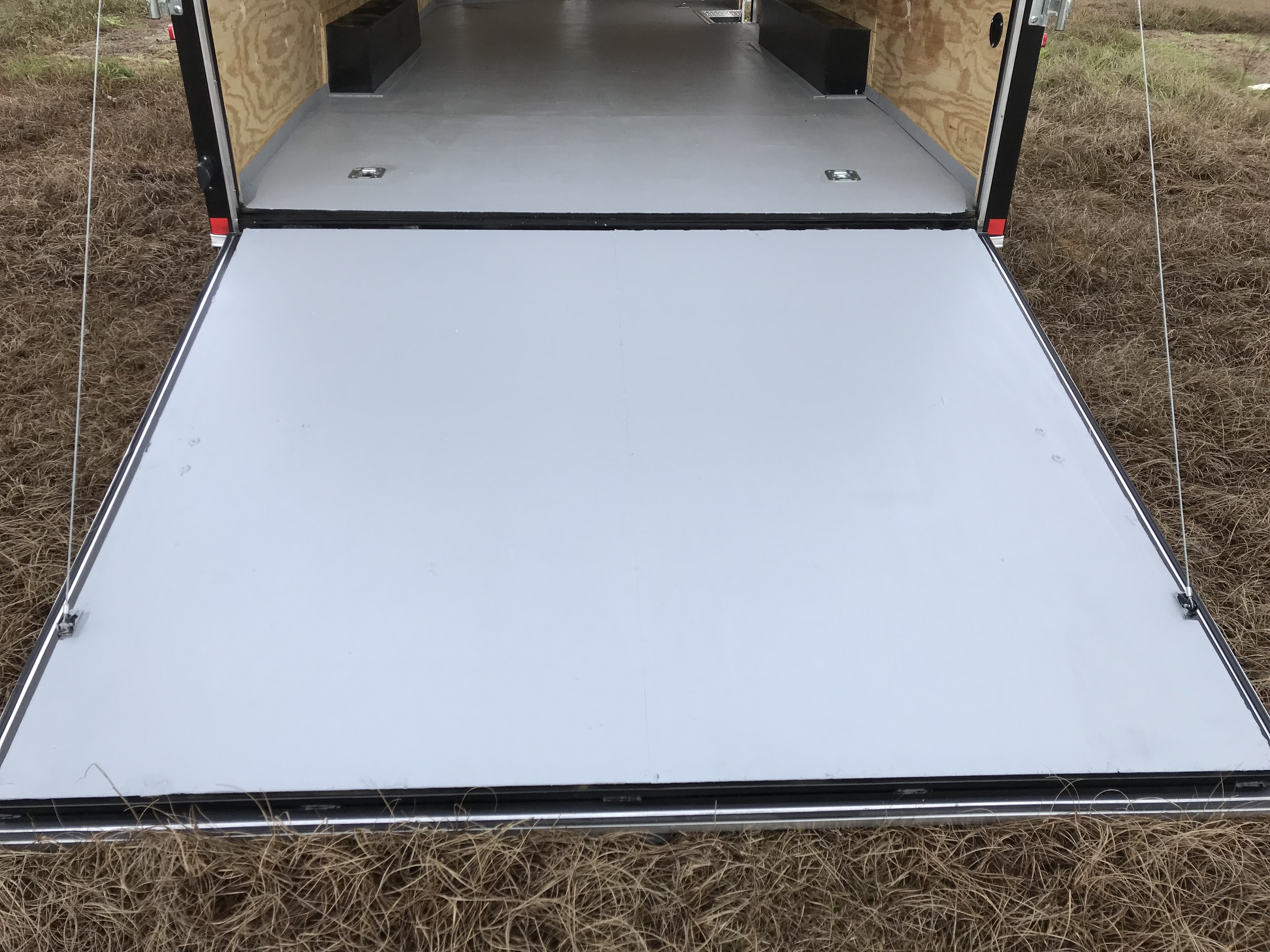

• Rear 4500 lb Heavy Duty Ramp Door with flap extension
• 4 Foot beaver tail on rear
• 3/4″ plywood floor painted gray
• 3/8″ Plywood walls
• (4) D-ring tie downs in floor – recessed and bolted in place with steel plate
• 15″ Silver modular steel Wheels
• Radial Tires 225/75/R15
• 6 foot 6 inch interior height
• All LED Lights
• 2 5/16th Front Coupler
• 36″ Bar Lock side door

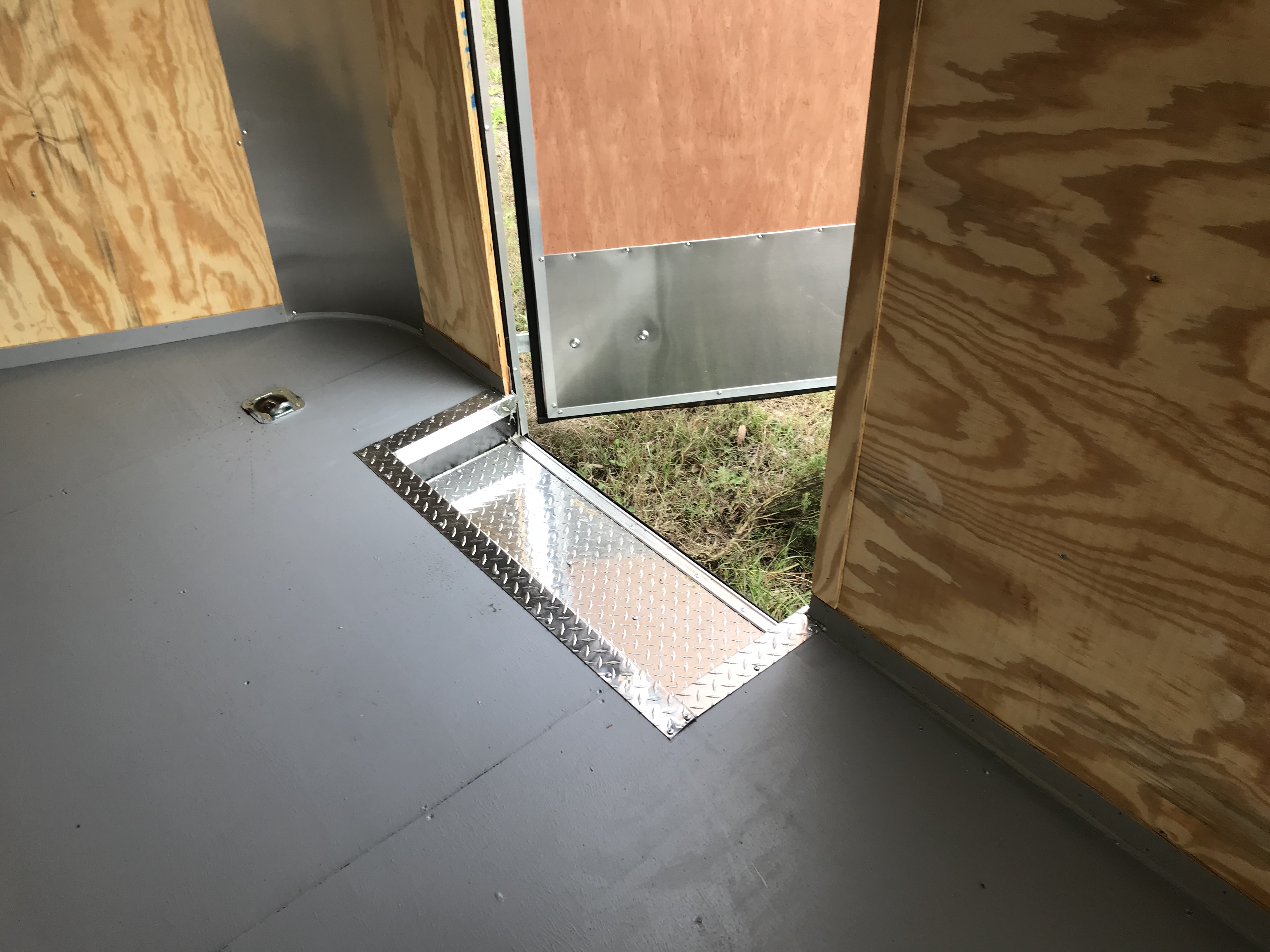

• Built in step at side door

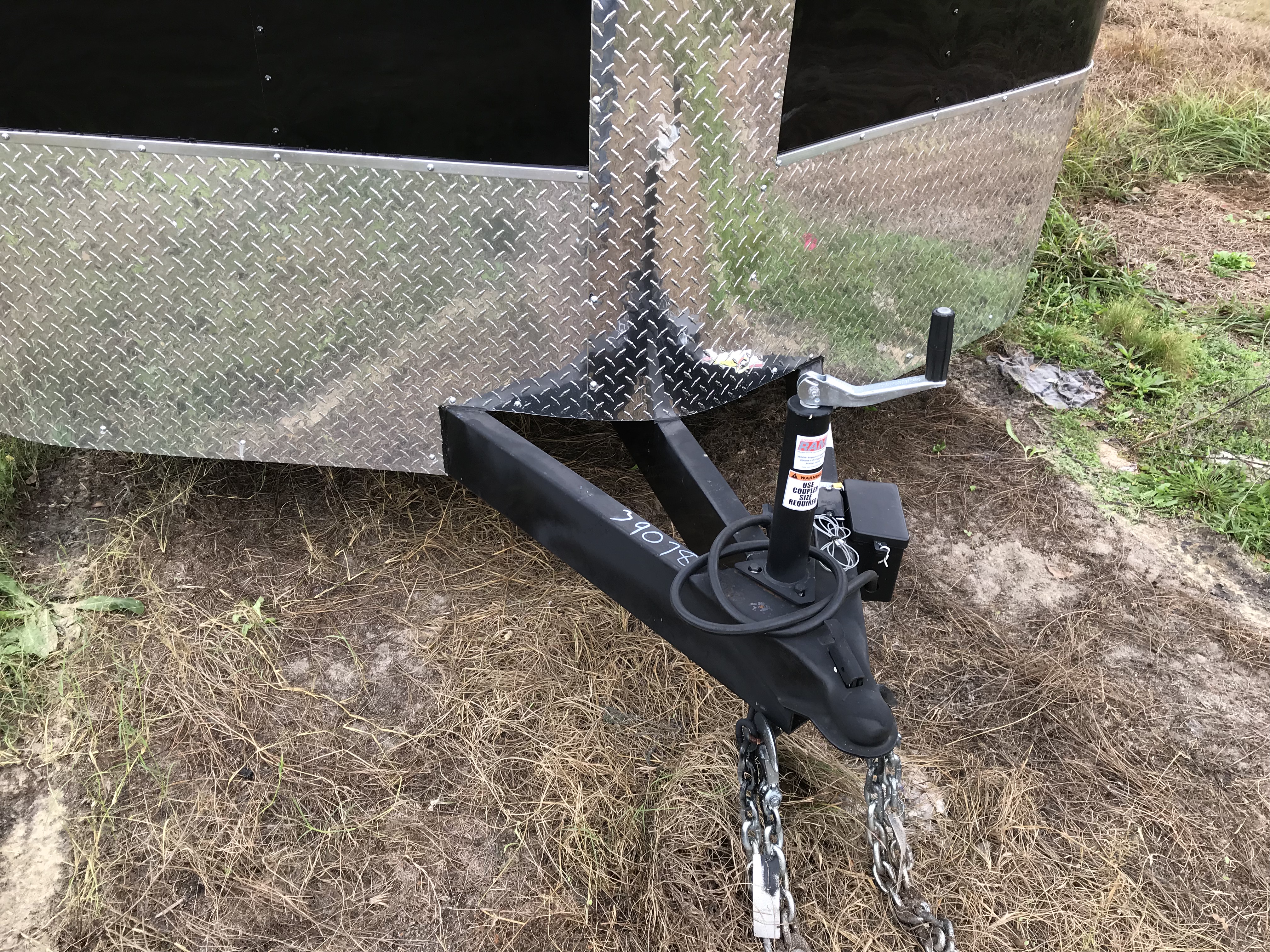

• 2000 lb Tongue Jack
• Corrugated galvanized Mesa roof
• Asphalt Undercoating
• Drip edge over all doors
• Screwed Exterior
• Deluxe tag bracket w/ light
• Sand foot on tongue jack
• DOT Reflective Tape
