Description

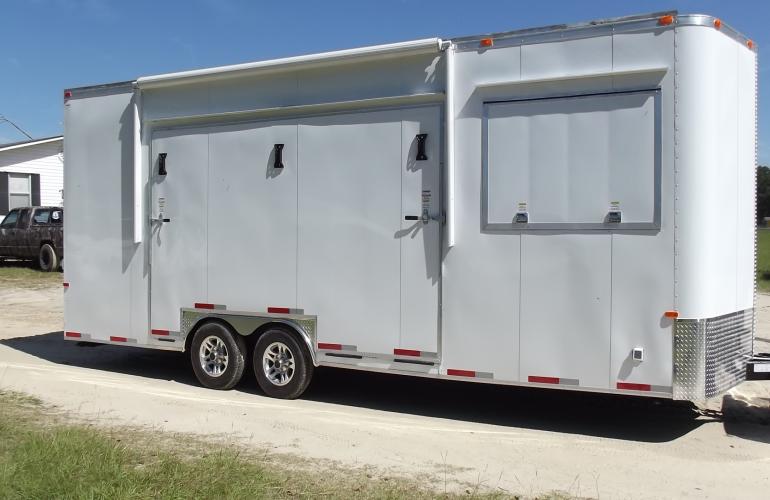

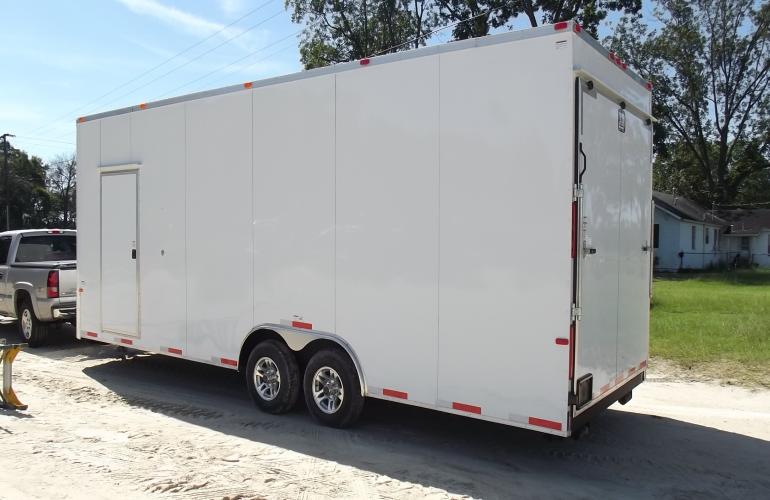

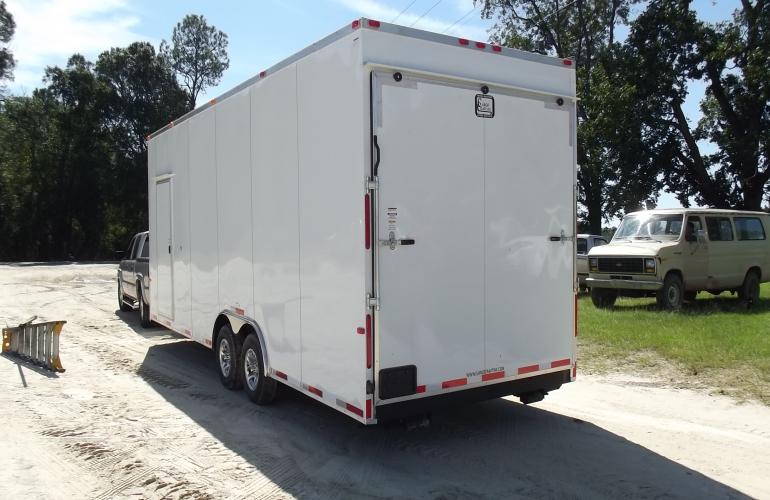

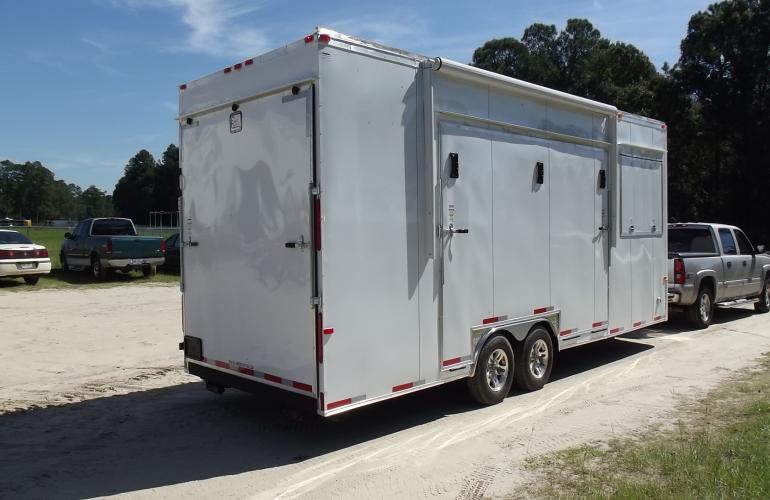

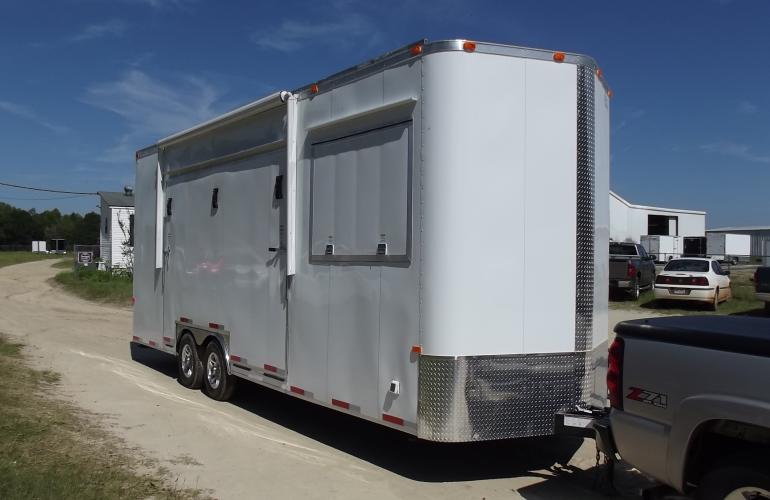

8.5 x 24 Stage trailer is perfect for small events or concerts
Included Features:
- 2 Foot rounded V-nose in addition to 24′ box
- 2×6 Tubular main frame
- 16” On center floor crossmembers
- Tubular 16″ on center wall studs
- Tubular 16″ on center ceiling studs
- Triple Tube Tongue
- Extended tongue
- Asphalt Undercoating
- 3/4″ Plywood floor
- 7/16″ OSB walls and ceiling
- White aluminum interior walls
- White aluminum interior ceiling
- Insulated walls and Ceiling
- Screwless Exterior
- White exterior aluminum .030 gauge
- 8 foot interior height
- (4) D-rings in floor – recessed and bolted in placed with steel plate
- 5200# Dropped Leaf Spring axles
- Electric Brakes both axles
- Easy Lube Hubs

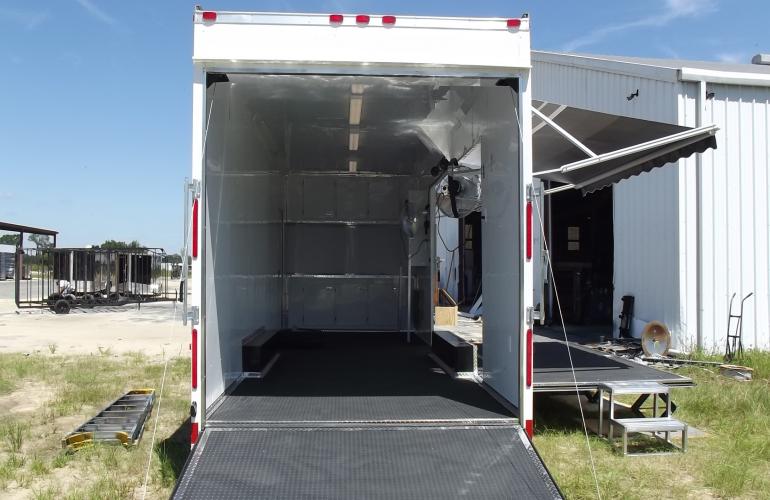

- Heavy Duty Rear ramp 4500# with flap
- 15” Alloy Aluminum wheels
- Radial Tires 225/75/15
- Corrugated Galvanized Mesa Style Roof
- All LED lights

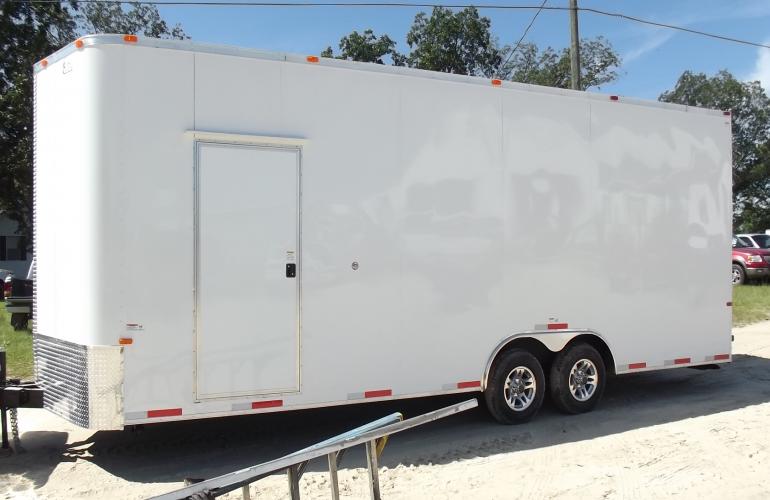

- 36″ RV Style side door
- Built in step at side door
- 24″ Diamond Tread Stoneguard
- Pair of Rear Bogey Wheels (steel)
- 2 5/16th Front coupler

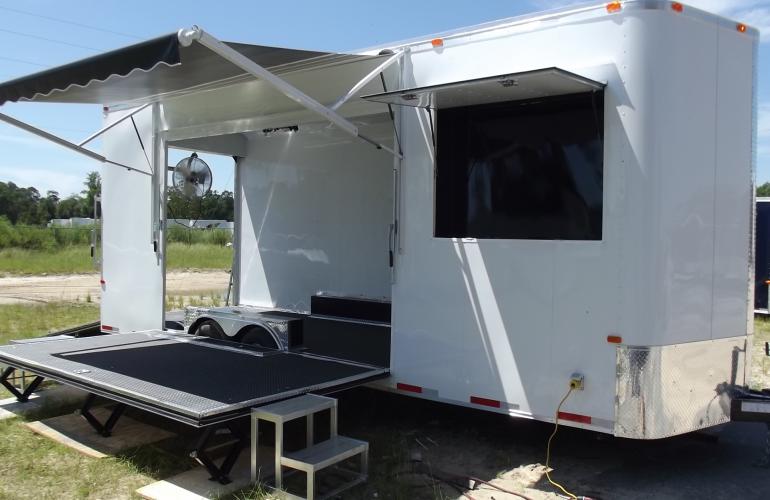

- 40 x 74″ TV Compartment with top hinge lift up awning with RV latch

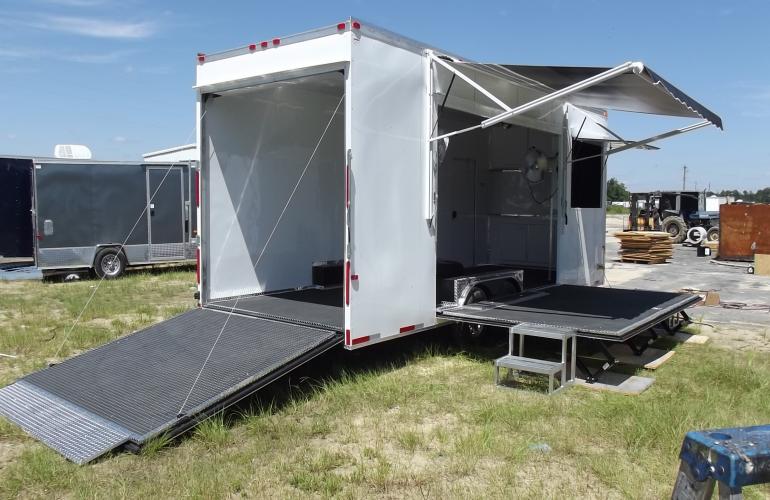

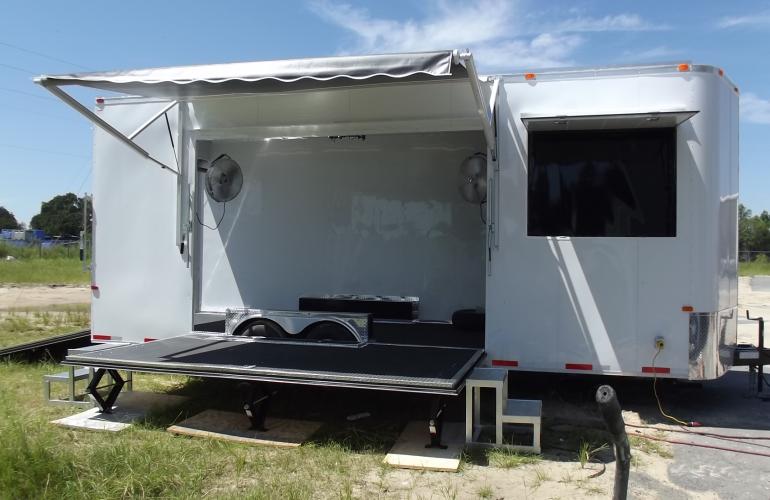

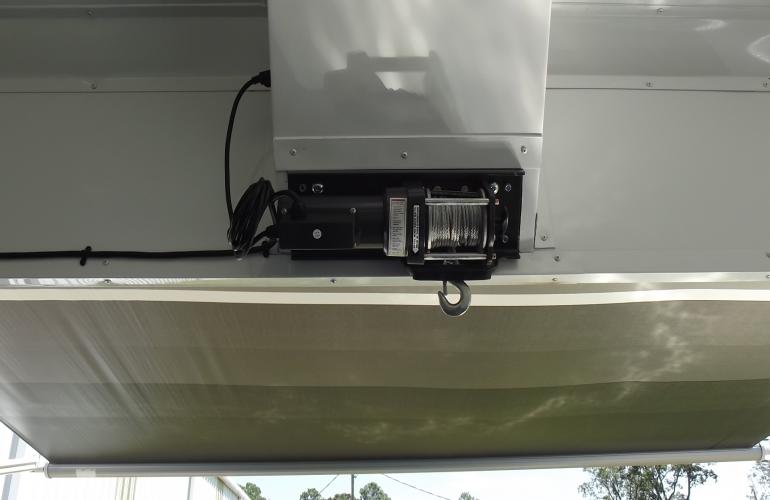

- 12′ Let down stage powered by Superwinch
- (3) scissor Jacks under the stage
- (4) Scissor jacks under trailer (1) under each corner

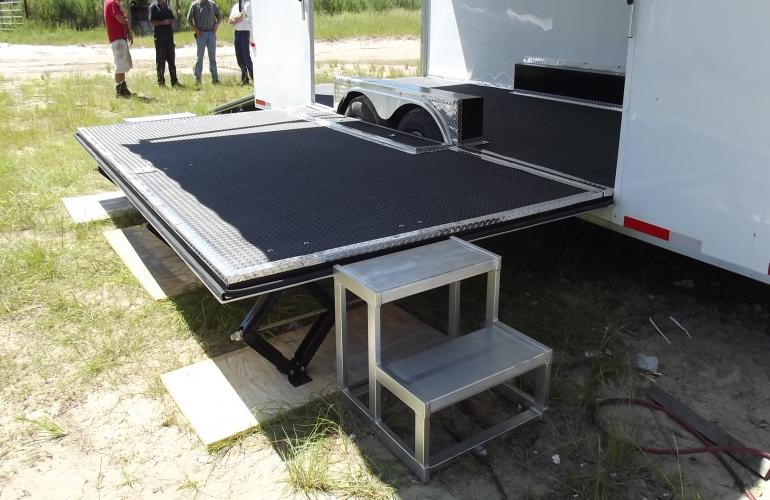

- 1 set of custom built aluminum steps on side of stage
- Custom Built Inserts for the gaps when the stage is let down

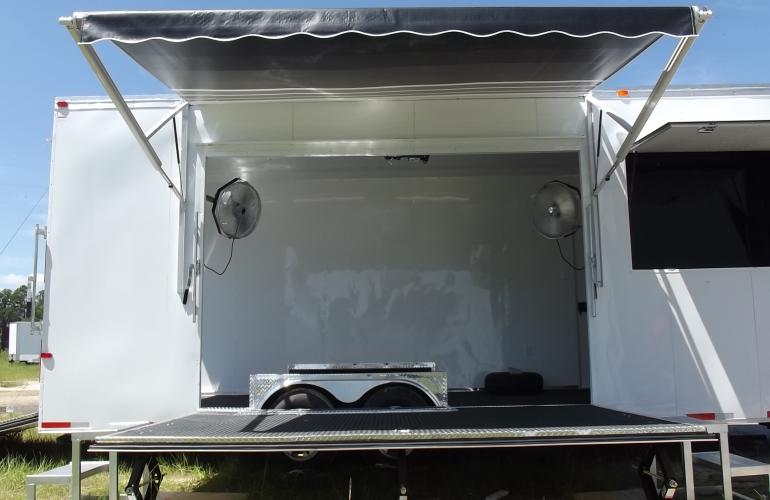

- 13 foot awning over the stage

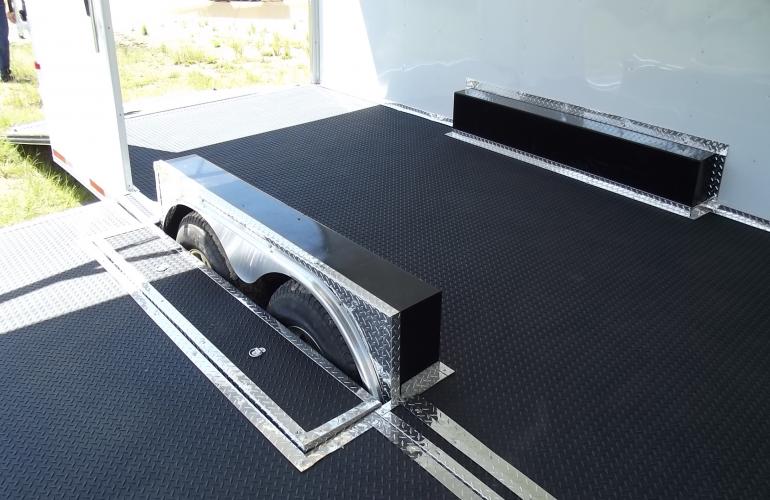

- Rubber Tread Plate floor, ramp, & Flap

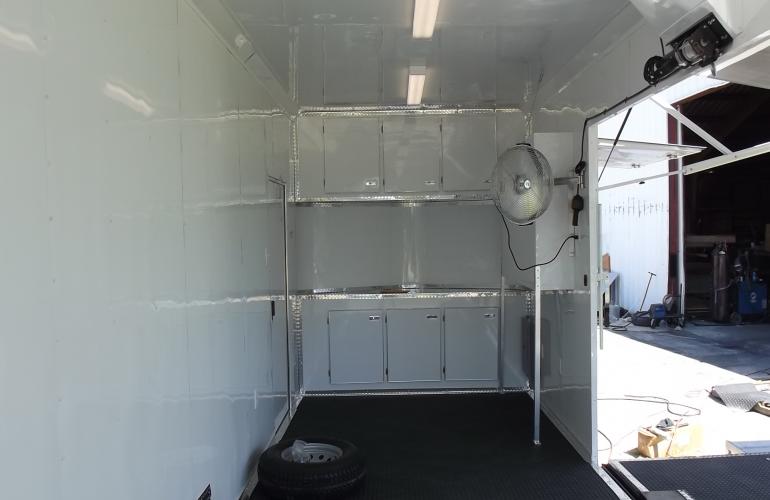

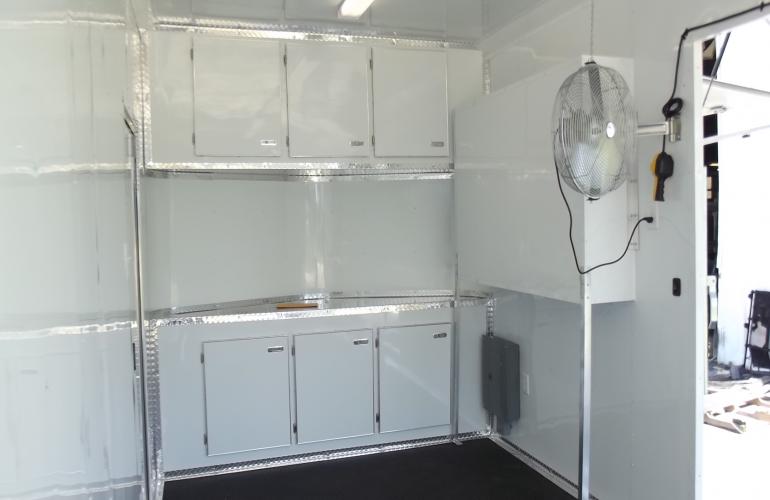

- 8′ of upper cabinets in V-nose
- 8′ of Base cabinets in V-nose
- 50 amp electrical Package
- (4) 4′ LED lights
- (5) interior Outlets
- 50 amp ship to Shore cord

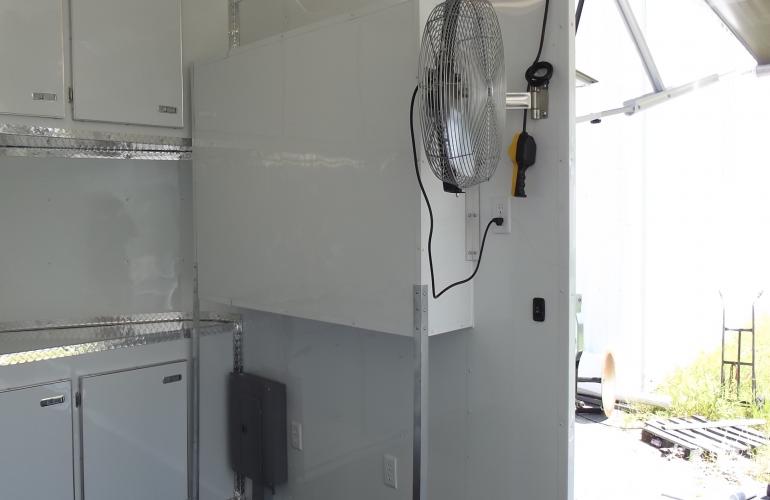

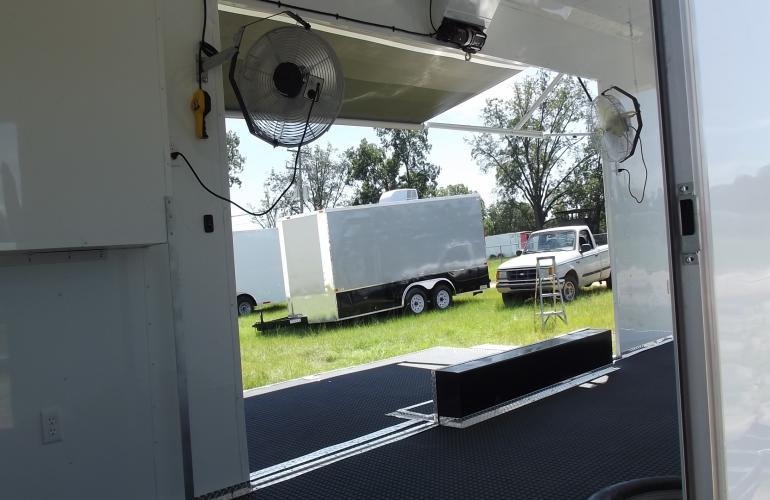

- (2) Electric fans
- Sand foot on tongue jack
- Deluxe tag bracket
- DOT Reflective Tape
- Drip edges over all doors
